Features

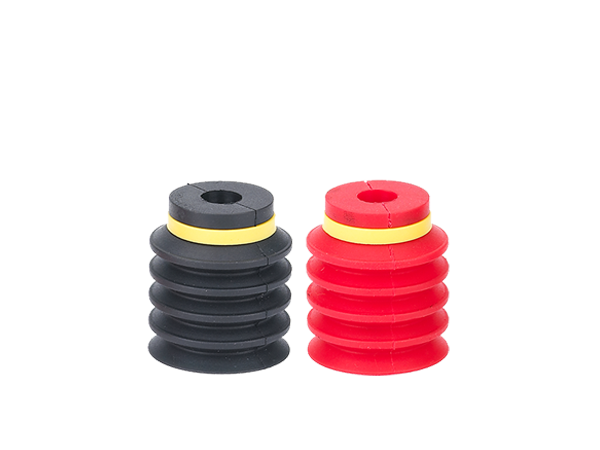

◇ 4.5 bellows suction cup,suitable for transferring objects with height differences.
◇ High safety for handling fragile objects.
◇ Handling food with plastic package.
Applications
◇ Egg
◇ Glass cup
◇ Bread
◇ Products in plastic package
| How to order | |||||||
| SBL 15 N -M5M ① ② ③ ④ | |||||||
| ① Series | ② Diameter | ③ Material & Hardness | ④ Connection thread | ||||
| SBL | 15 - φ15mm 20 - φ20mm 30 - φ30mm 40 - φ40mm 50 - φ50mm | N - NBR S - Silicone WS - White silicone | Nil - Suction cup alone M5M - M5 Male thread G1F - G1/8 Female thread G1M - G1/8 Male thread G2F- G1/4 Female thread G2M - G1/4 Male thread G3F- G3/8 Female thread G3M - G3/8 Male thread | ||||
| Selection | |||||||
| Model/ Connection thread | M5M | G1F | G1M | G2F | G2M | G3F | G3M |
| SBL15 | ● | - | - | - | - | - | - |
| SBL20 - 40 | - | ● | ● | - | - | - | - |
| SBL50 | - | - | - | ● | ● | ● | ● |
◇Note: "●"- standard, in stock. "—"-unavailable.
| Technical parameters | ||||
| Model | Pull-out force (N) | Inner volume (cm3) | Min. curve radius of workpiece (mm) | Recommended hose dia. (mm) |
| SBL15 | 8 | 1.95 | 12 | 6 |
| SBL20 | 14 | 4 | 17 | 6 |
| SBL30 | 31 | 13 | 25 | 6 |
| SBL40 | 56 | 27 | 34 | 6 |
| SBL50 | 88 | 55 | 42 | 8 |
◇Note: Testing vacuum level -60kPa.Workpiece with smooth and clean surface. The data of pull-out force as above are
figured out without considering safety factor. The data may be different according to different workpiece surfaces.

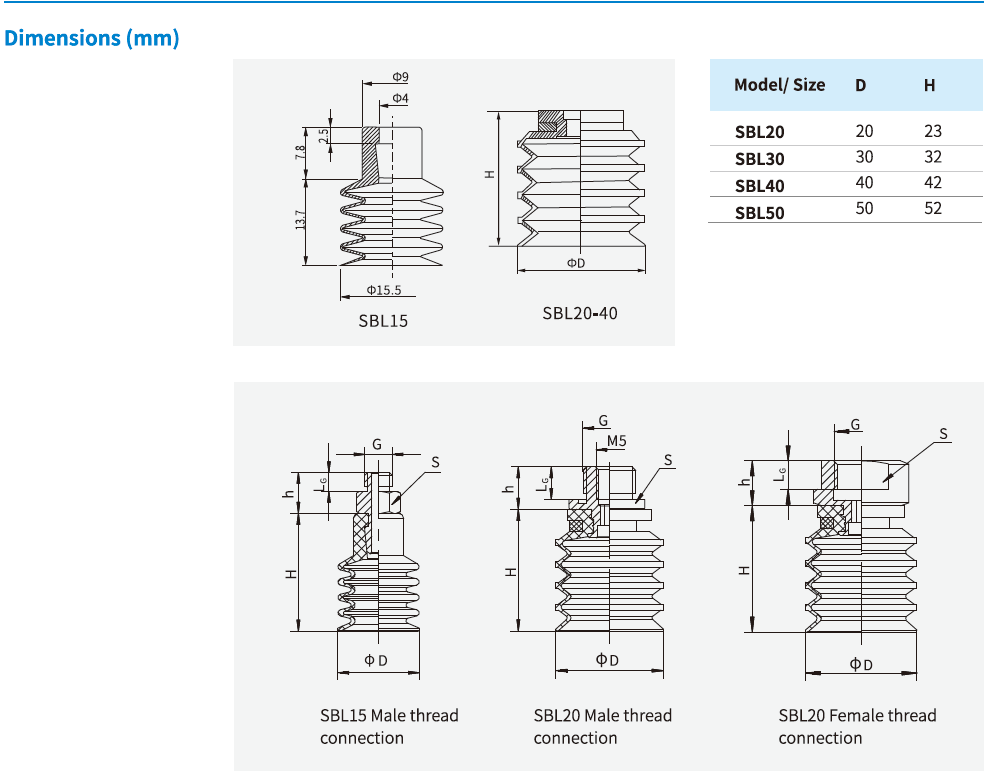

| Model | D | H | G | LG | h | S |
| SBL15-M5M | 15.5 | 21.5 | M5 | 5 | 9 | 7 |
| SBL20-G1F | 20 | 23 | G1/8 | 7 | 8 | 13 |
| SBL20-G1M | 20 | 23 | G1/8 | 6 | 7.8 | 13 |
